Boron Carbide is a very hard and durable ceramic material with the chemical formula B4C. It’s one of the hardest materials known, ranking third after diamond and cubic boron nitride. This exceptional hardness makes it a prime candidate for use in various industrial applications where wear and tear resistance is crucial.
Property of Boron Carbide
- Hardness
It has a Mohs hardness of about 9.3, making it incredibly resistant to scratching and wear. - Lightweight
Boron Carbide is also remarkably lightweight, which makes it especially valuable in applications where weight reduction is essential, such as in ballistic armor. - Thermal Stability
It can withstand high temperatures, maintaining its strength up to about 400°C, with a melting point of approximately 2450°C.
- Chemical Inertness
It exhibits resistance to attack by most acids and alkalis. - Low Density
Its low density compared to other hard materials makes it ideal for more weight-sensitive applications.
These properties make Boron Carbide an excellent material for abrasive powders, body armor, tank armor, and various other applications requiring materials that can endure extreme conditions and environments.
Specification of Boron Carbide
| Chemical Property (%) | ||
|---|---|---|
| B4C | 96.75 | |
| Free Boron | 0.27 | |
| B2O3 | 0.3 | |
| Free Carbon | 1.02 | |
| Fe2O3 | 0.18 | |
| Physical Property | ||
|---|---|---|
| Color | Black | |
| Crystal Structure | Rhoombohedral | |
| Moleclar Formula | B4C | |
| Melting Point | 2450℃ | |
| Boiling Point | 3500℃ | |
| Mohs Hardness | 9.3 | |
| True Density | 2.52 g/cm3 | |

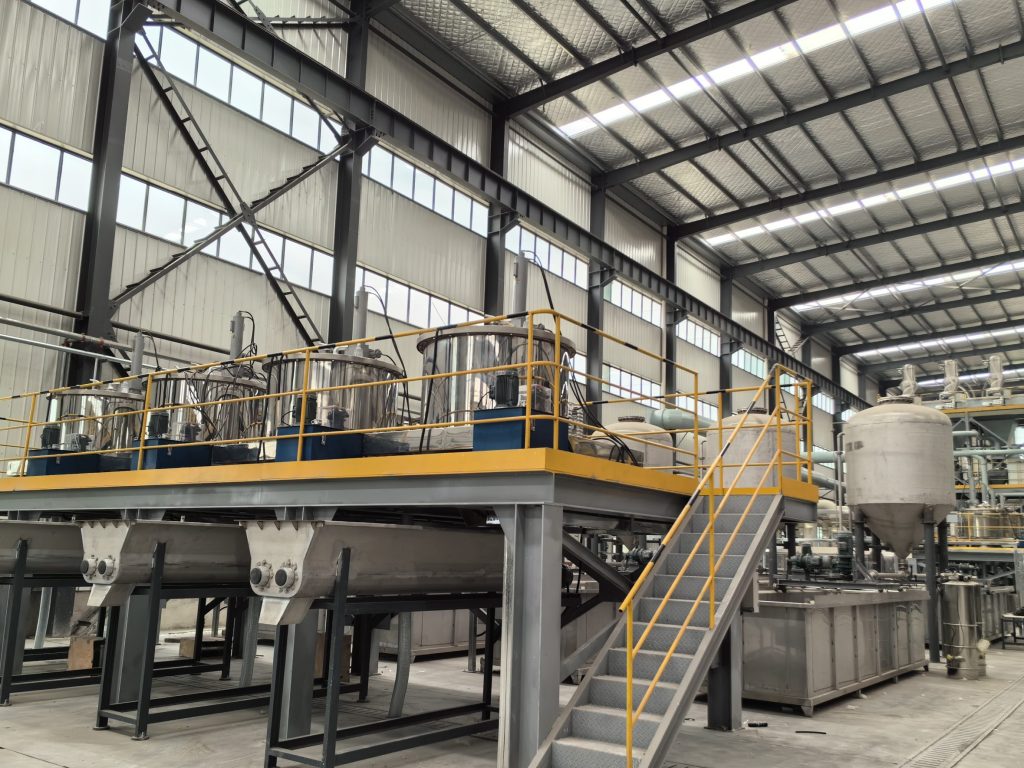

How is Boron Carbide Produced?
Boron Carbide is produced primarily through a high-temperature reduction process using boron oxide (B2O3) and carbon as starting materials. Here’s a detailed explanation of the production process:
- Raw Material Preparation
The initial step in producing Boron Carbide involves preparing the raw materials. Boron oxide (B2O3), derived from boric acid or borax, is mixed with a carbon source. The carbon source can be petroleum coke, graphite, or another form of carbon with high purity. - Carbothermal Reduction
The mixture of boron oxide and carbon is subjected to carbothermal reduction in an electric arc furnace. This process typically occurs at temperatures ranging from 1400°C to 2500°C. During carbothermal reduction, the carbon reduces the boron oxide to Boron Carbide, according to the following chemical reaction: 2B2O3+7C→B4C+6CO
This reaction releases carbon monoxide (CO) as a byproduct, which escapes as gas. - Synthesis at High Temperature
The high temperature required for the reaction is achieved using an electric arc furnace, where an electric arc is struck between carbon electrodes immersed in the mixture. The intense heat generated by the arc facilitates the reaction to produce Boron Carbide powder.
- Cooling and Collection
Once the reaction is complete, the material is allowed to cool slowly inside the furnace. As it cools, the Boron Carbide crystallizes into a solid mass. This mass is then crushed and milled into a fine powder, which is the form commonly used for most applications. - Purification and Sizing
The Boron Carbide powder is further processed to remove impurities and achieve the desired particle size. This may involve additional milling, washing, and sieving processes. The powder’s purity and particle size are critical factors that determine its suitability for specific applications, such as abrasives or ceramics.
- Quality Control

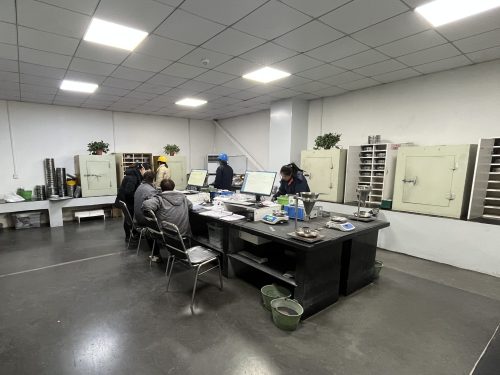

Throughout the production process, quality control measures are implemented to ensure the product meets specific standards. This includes testing for purity, particle size distribution, and other relevant properties. - Packaging

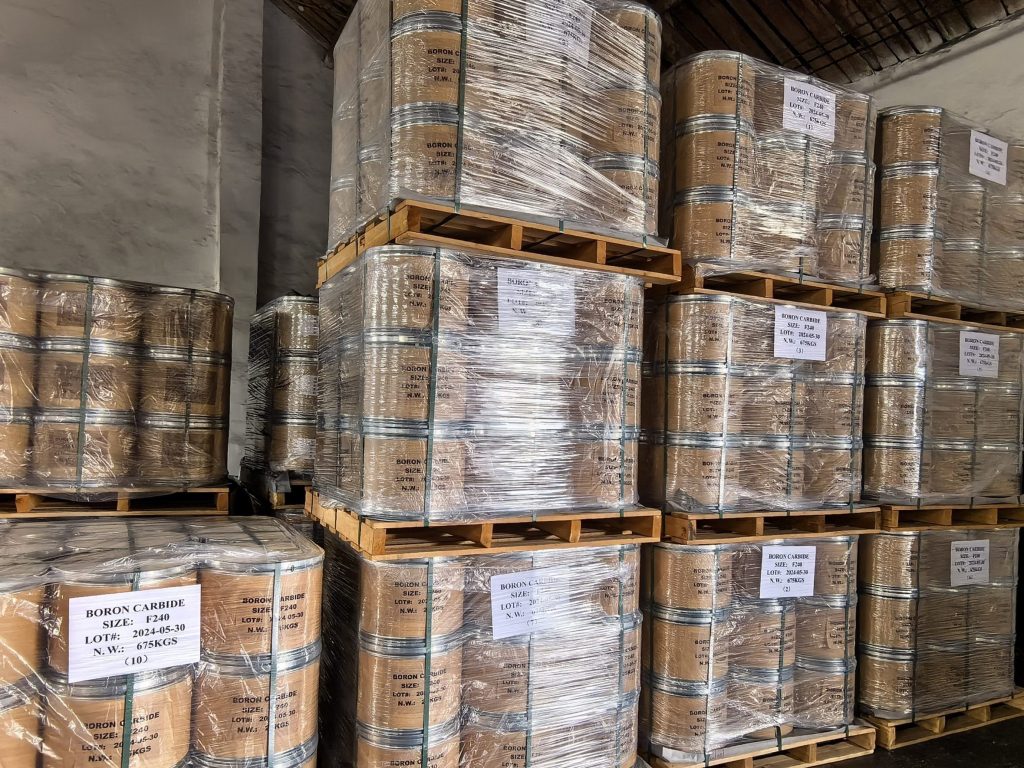

Finally, the processed Boron Carbide powder is packaged in appropriate containers to protect it from contamination and moisture, ensuring it remains effective for industrial use.
This detailed production process underscores the complexities involved in producing Boron Carbide, a material valued for its extreme hardness and chemical stability in harsh environments.

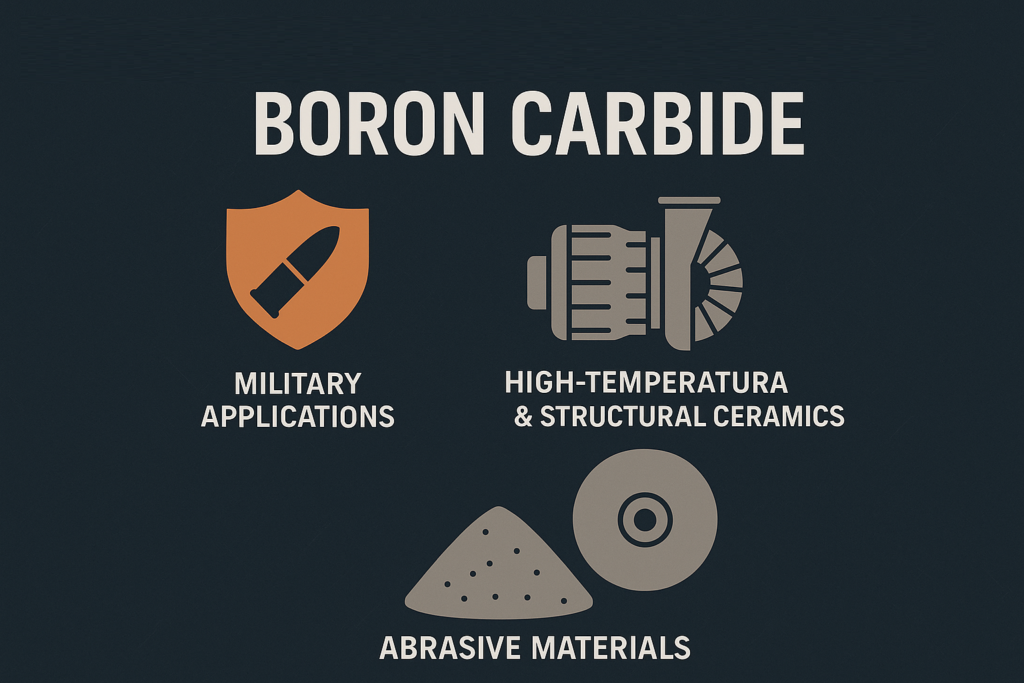

What is Boron Carbide Used For?
Boron Carbide (B4C) is a highly versatile and extremely hard ceramic material, utilized across various industries for its unique properties. Here’s a detailed look at its primary uses:
1 Abrasive Applications
Due to its high hardness (Mohs hardness of about 9.3), Boron Carbide is an excellent material for abrasive applications. It is used in abrasive grits and powders for processes such as water jet cutting, lapping, and grinding of hard materials. These abrasives are ideal for use on hard metals, ceramics, and glasses where precision and minimal material damage are critical.
2 Body Armor and Armored Vehicles
Boron Carbide’s low density combined with its high hardness makes it ideal for ballistic armor. It is one of the preferred materials for personal body armor plates, as well as armor plating in military vehicles. It absorbs the impact energy of projectiles effectively, thereby providing protection against high-velocity bullets and shrapnel.
3 Nuclear Applications
Boron Carbide is also utilized in nuclear reactors as a neutron absorber due to its high cross-section for neutron capture. It plays a critical role in controlling nuclear reactions and ensuring safety by absorbing excess neutrons that are produced during fission processes.
4 High-Temperature Thermoelectric Materials
Because of its ability to withstand extremely high temperatures, Boron Carbide is used in thermoelectric materials that convert heat to electricity. These applications are particularly useful in power generation where waste heat recovery is crucial, such as in aerospace and automotive industries.
5 Refractory Materials
Its high melting point (about 2450°C) and chemical inertness make Boron Carbide an excellent material for refractory applications. It is used in the linings of furnaces and reactors that operate at high temperatures, especially in the metallurgy of metals like iron and steel.
6 Nozzles for Abrasive Water Jets and Sandblasting
Boron Carbide’s resistance to abrasion and its hardness are exploited in the manufacture of nozzles for abrasive water jets and sandblasting equipment. These nozzles need to withstand the erosive action of high-speed, abrasive-laden water or air streams used in cutting and cleaning operations.
7 Cutting Tools and Dies
The hardness and wear resistance of Boron Carbide make it suitable for manufacturing cutting tools and dies, particularly for applications that require maintaining sharp edges and tolerances at high temperatures.
8 Antioxidant Additive in Refractory Materials
Boron Carbide is also added as an antioxidant to other refractory materials to improve their oxidation resistance, enhancing their lifespan and performance in harsh environments.
9 Wear Parts
It is used in the production of wear-resistant parts, which are crucial in machinery and equipment subjected to severe wear conditions, ensuring longevity and reliability.
Through these applications, Boron Carbide serves critical roles in modern technology and industrial processes, leveraging its unique phyB4Cal and chemical properties to meet demanding performance requirements.
What’s the difference between Boron Carbide and Silicon Carbide?
Boron Carbide (B4C) and Silicon Carbide (SiC) are both advanced ceramic materials known for their hardness and durability. However, they possess distinct properties that make them suitable for different applications. Here’s a comparative overview presented in a table format:
| Item | Boron Carbide (B4C) | Silicon Carbide (SiC) |
|---|---|---|
| Hardness | Extremely hard, about 9.3 on the Mohs scale | Slightly less hard than boron carbide, about 9-9.5 on the Mohs scale |
| Toughness | Relatively brittle compared to silicon carbide | Generally tougher and more resistant to fracture |
| Thermal Conductivity | Lower thermal conductivity, around 30 W/mK | Higher thermal conductivity, up to 490 W/mK |
| Melting Point | Higher melting point at approximately 2450°C | Lower melting point, about 2730°C |
| Density | Lower, around 2.52 g/cm³ | Higher, around 3.21 g/cm³ |
| Chemical Stability | Good chemical resistance but less oxidation resistance at high temperatures | Excellent chemical and oxidation resistance |
| Electrical Conductivity | Insulating properties | Varies from semi-conductive to conductive depending on purity and doping |
| Cost | Typically more expensive due to production complexity | Generally less expensive and more widely available |
| Color | Typically black | Generally black or green, depending on the purity and crystalline form |
| Applications | Ideal for abrasive applications, body armor, and neutron absorbers in nuclear reactors | Widely used in abrasive applications, electronic substrates, refractories, and as structural materials in high-temperature applications |
This comparison shows that while both materials are extremely hard ceramics, their differences in toughness, thermal properties, and electrical conductivity tailor them for specific uses across various high-performance environments.
How to Choose the Right Boron Carbide
When purchasing boron carbide, it’s crucial to consider several factors to ensure the material meets your specific application requirements effectively. Here’s a consolidated list of these factors, blending their importance and considerations:
Purity
Ensure the boron carbide has minimal impurities, as its performance, particularly in terms of hardness and abrasion resistance, is significantly influenced by purity. Check the supplier’s specifications for levels of unwanted elements like silicon and carbon.
Grain Size and Distribution
The size and uniformity of boron carbide grains are critical for consistency and the quality of the final product. Ensure that the grain size distribution matches the precision required for your specific application, especially in abrasive settings.
Hardness and Toughness
While the primary attribute of boron carbide is its hardness, the material’s toughness is crucial in applications involving dynamic stresses, such as body armor. Verify both hardness and toughness to ensure they meet the specific requirements of your application.
Thermal Stability
For high-temperature applications, the thermal stability of boron carbide is essential. Check the material’s maximum operating temperature and thermal shock resistance to ensure it aligns with the thermal demands of your process.
Chemical Compatibility
Considering boron carbide’s chemical inertness, it’s vital to ensure that it is compatible with any chemicals it may encounter in your process, particularly at elevated temperatures. Verify its resistance to the specific environments it will face.
Supplier Reliability and Certifications
The quality and consistency of boron carbide can vary significantly between suppliers. Opt for suppliers with reliable track records, robust customer service, and necessary industry certifications such as ISO standards. References or case studies relevant to your industry are also valuable.
Cost-Effectiveness
Evaluate not only the initial price of boron carbide but also consider the longevity and performance improvements it may offer over other materials. Boron carbide is typically more expensive but can be more cost-effective in the long run due to its durability.
Customization Options
Certain applications may require customized forms of boron carbide. Check if the supplier can provide custom formulations, shapes, or composites that combine boron carbide with other materials to meet specific needs.
Environmental and Safety Aspects
Handling, storage, and disposal of boron carbide should comply with local environmental and safety regulations. Familiarize yourself with the material safety data sheets (MSDS) for proper management practices.
By carefully evaluating these integrated aspects, you can select a boron carbide product that delivers optimal performance, safety, and value for your particular industrial applications.
In Summary
Choose Great Abrasive as your trusted partner and leverage our expertise to secure premium Boron Carbide products that cater precisely to your needs for grinding, cutting, and finishing. Our commitment to quality and customer-centric approach ensures that you receive not only the best products but also customized solutions designed to overcome your specific operational challenges.
