How Is Silicon Carbide (SiC) Produced?

Silicon Carbide (SiC) is produced through a complex pro […]

Silicon Carbide (SiC) is produced through a complex process that begins with the careful selection of high-purity quartz sand and petroleum coke, which are then blended, heated in an electric furnace at temperatures up to 2500°C, and subsequently cooled and refined to form the final product. This method ensures the material’s exceptional hardness and suitability for various applications in industries such as abrasives, refractories, and electronics.

Here I offer a detailed exploration of the sophisticated path from raw materials to this cutting-edge material.

Initiation: Raw Material Preparation

The genesis of SiC manufacturing is rooted in the meticulous selection of pristine raw materials. Primarily, high-purity quartz sand (SiO2) and superior-grade petroleum coke (C) are utilized. Quartz sand serves as the silicon source, while petroleum coke provides the carbon element, both combined in precise proportions. Depending on specific production objectives, minor quantities of salt (acting as a flux) and sawdust (to adjust the reaction atmosphere and enhance porosity) might also be incorporated.

The Precision of Blending

In the production of SiC, the precision in the proportioning and blending of raw materials is paramount. Adjustments in the ratios of these materials are necessitated by the diverse specifications and quality requirements of the final product. The thorough mixing of these components is crucial, as it directly impacts the uniformity and quality of the outcome. This process is typically conducted using specialized mixing equipment to ensure homogeneity.

Furnace Preparation: Ensuring Optimal Conditions

The electric furnace, instrumental in the SiC production process, requires comprehensive preparation for re-use. This includes the cleaning of the furnace base, adjustment of electrodes, maintenance of furnace walls, and the rectification of any other potential defects. This stage is critical for ensuring the furnace is in optimal condition for the smelting process.

Charging the Furnace

The process of charging the furnace involves the strategic placement of reaction materials, insulating agents, and core materials, followed by the construction of the furnace walls which play a crucial role in insulation and material containment.

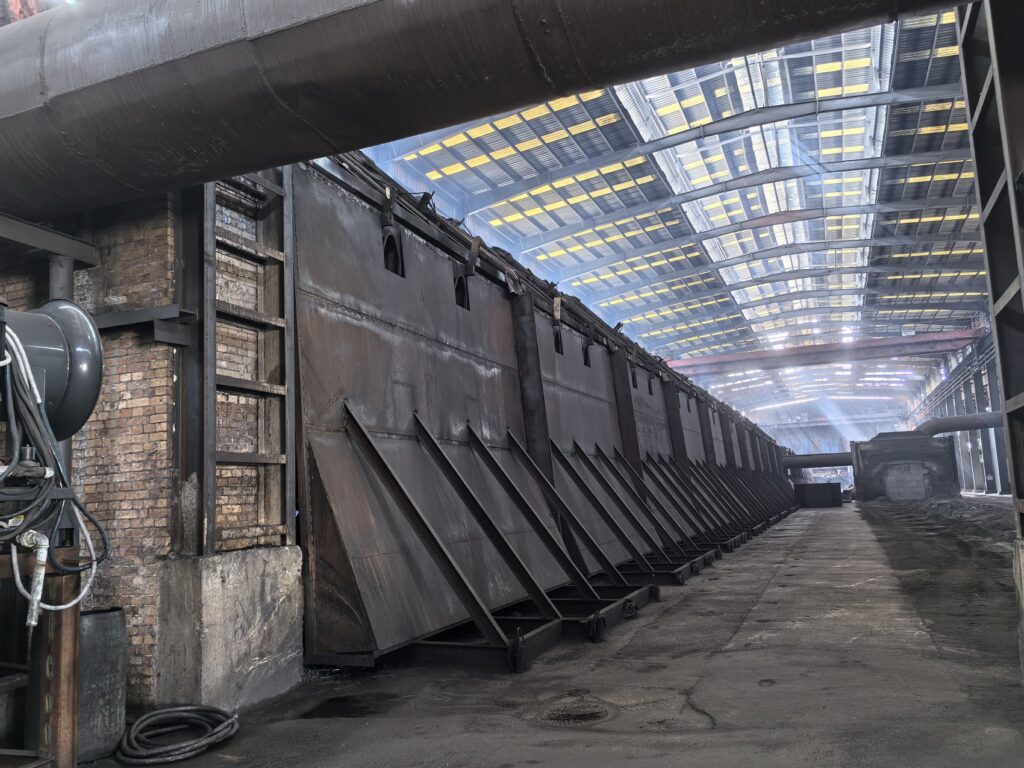

Electrifying Smelting: The Core Process

Connecting the furnace to the transformer initiates the smelting process, a critical phase in SiC production. This phase, characterized by the application of electrical power, ignites a flame to start the reaction, lasting approximately 170 hours. The smelting process, primarily conducted in resistance furnaces such as the Acheson furnace, requires the temperature to be meticulously controlled between 2000°C and 2500°C. This facilitates the reaction between quartz sand and petroleum coke, yielding SiC and carbon monoxide in an exothermic reaction that necessitates precise thermal management to ensure product quality and efficiency.

Cooling and Solidification: The Crystallization Phase

Following the cessation of smelting, the furnace undergoes a natural cooling process, then meticulously deconstructed to allow for a controlled cooling and solidification phase. This stage is vital as the rate of cooling directly influences the crystalline growth of SiC and, consequently, the physical attributes of the final product.

Crushing: From Bulk to Granular

Post-cooling, the solidified SiC is subjected to a primary crushing process, breaking down the large masses into smaller, manageable fragments. This step is essential for reducing material volume and facilitating subsequent processing stages, including fine crushing and screening.

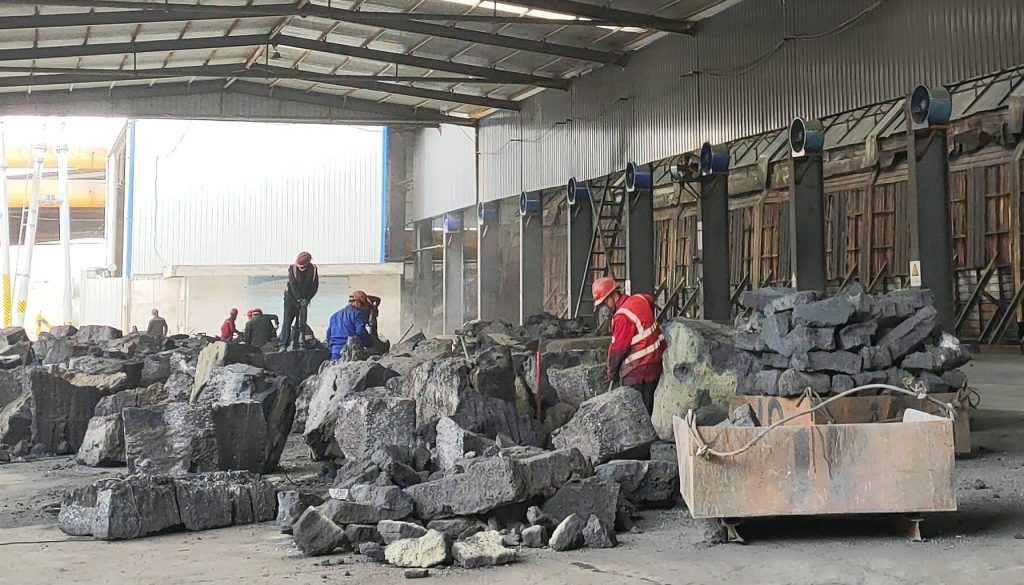

Sorting: Enhancing Product Purity

Following the initial crushing, the SiC material undergoes sorting to remove non-SiC elements such as unreacted raw materials and slag. This purification step is critical for improving the overall purity of the final product.

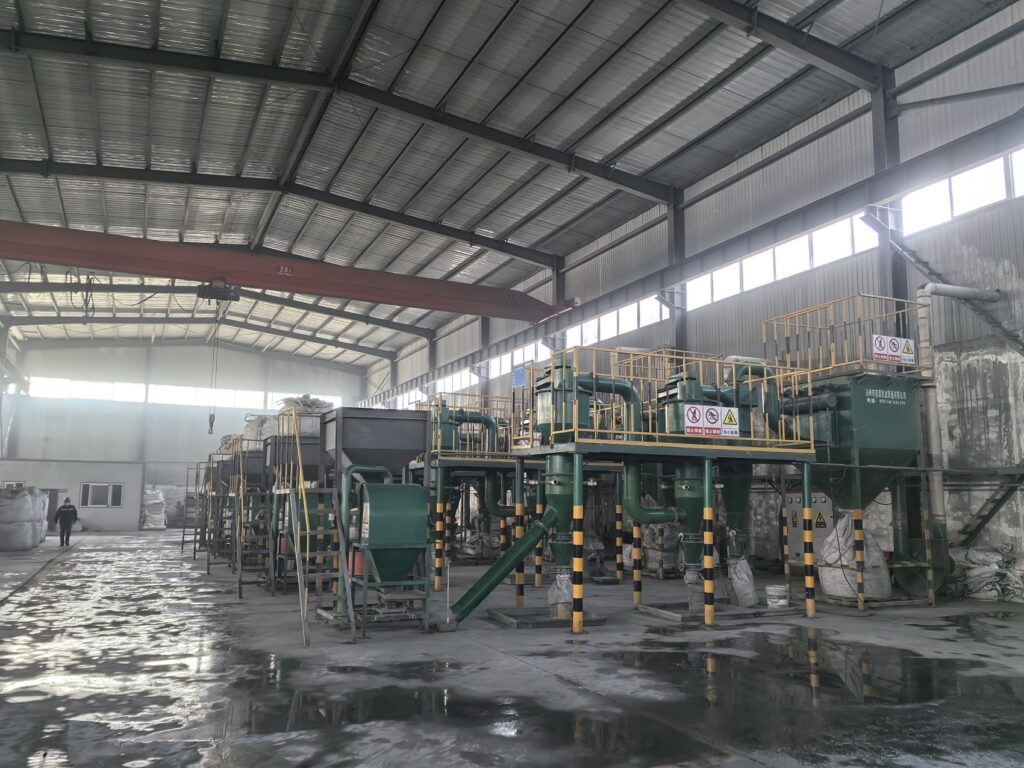

Fine Crushing and Magnetic Separation

The sorted SiC material is then further refined through crushing to achieve the desired granularity specified by customer requirements. This stage may employ various milling equipment, including ball mills or Raymond mills. Magnetic separation follows, aimed at removing ferromagnetic contaminants to ensure the highest purity of the SiC product.

Screening: Product Diversification

After fine crushing and magnetic separation, the SiC powder is subjected to screening, categorizing the material into different granularities. This process not only removes excess fines but also aligns the product with specific market demands.

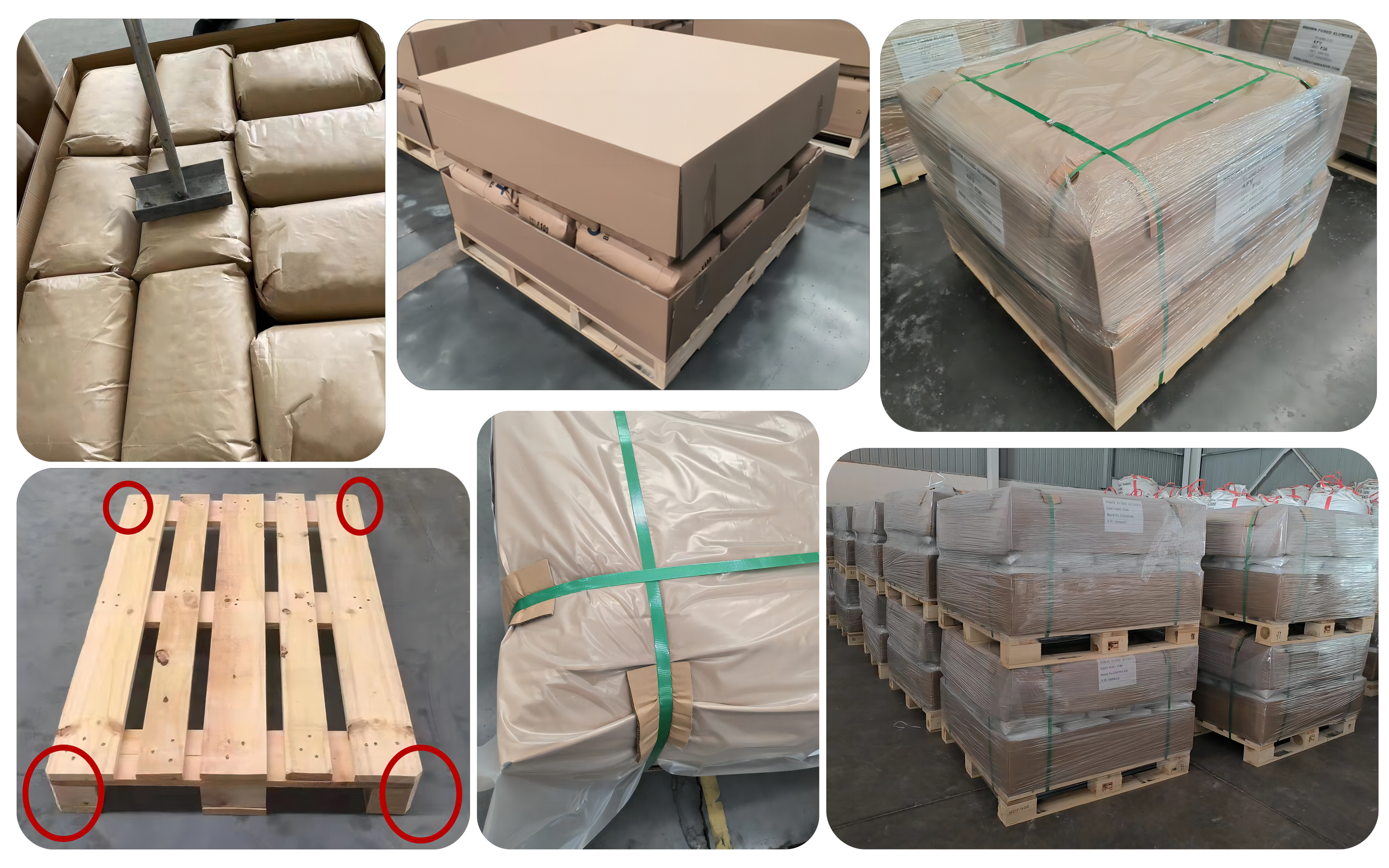

Packaging and Stringent Quality Control

Finally, the screened SiC product undergoes packaging, prepared for distribution to clients. The packaging process is tailored to meet specific customer needs, utilizing appropriate materials and methods. Throughout the production process, rigorous quality control measures are implemented at every stage—from raw material inspection and process monitoring to the final product evaluation—to ensure adherence to the highest industry standards.

Conclusion

The production of silicon carbide is a testament to the intersection of science and technology, encompassing a multitude of steps, each critical to the final product’s quality and performance. Through continuous technological innovation and process optimization, the efficiency and quality of SiC production can be further enhanced to meet the growing market demand. This commitment to excellence underscores our endeavor to advance the frontiers of material science, ensuring the provision of superior silicon carbide to the global market.
