Boron carbide (B₄C) is one of the hardest materials known to science — ranking just below diamond and cubic boron nitride.
It’s widely used in abrasives, blast nozzles, bulletproof armor, and advanced ceramics.
But here’s something most engineers and buyers don’t realize:
The way boron carbide is made has a major impact on its purity, particle size, and performance.
In this article, you’ll discover the four most common boron carbide production methods, how they work, and which application each is best suited for.

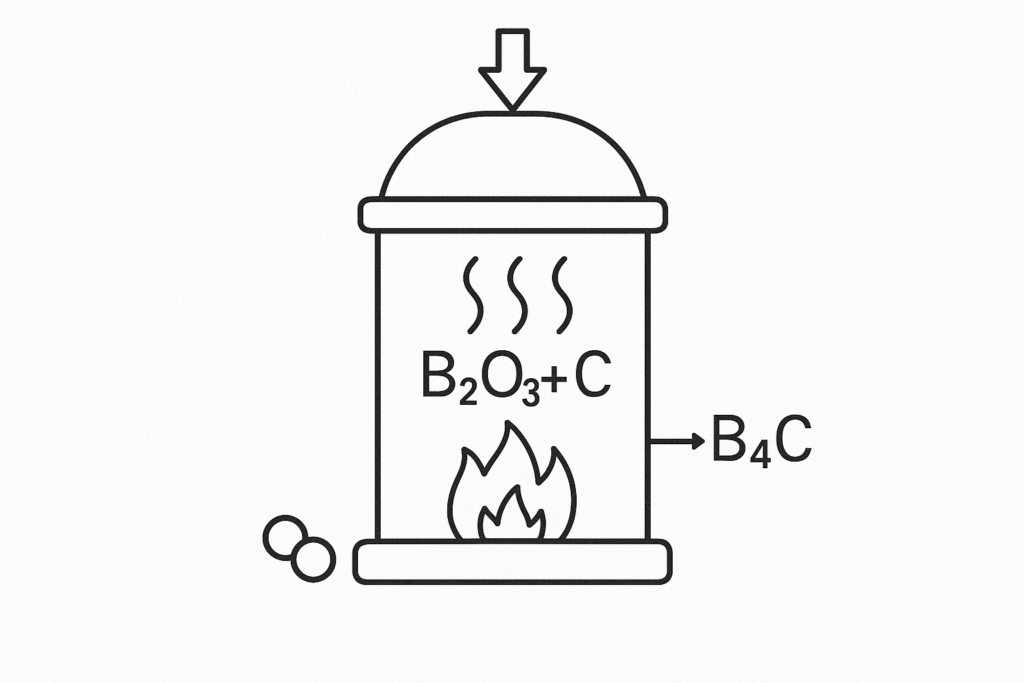

1. Carbothermal Reduction — The Industry Standard
What is Carbothermal Reduction?
This is the most widely used industrial process for manufacturing boron carbide.
It involves reacting boron oxide (B₂O₃) with carbon at high temperatures (typically above 1600°C).
The carbon serves both as a reducing agent and a reactant to form B₄C.
Key reaction:
2B₂O₃ + 7C → B₄C + 6CO↑
✅ Advantages:
- Mature, reliable, and scalable
- Cost-effective for mass production
- Works well for standard-grade abrasives and ceramics
⚠️ Challenges:
- Impurity control (free carbon, unreacted oxide)
- Requires post-processing (crushing, sieving)
- Particle size can be inconsistent
📦 Best for:
- Grinding wheels
- Nozzles
- General industrial ceramics

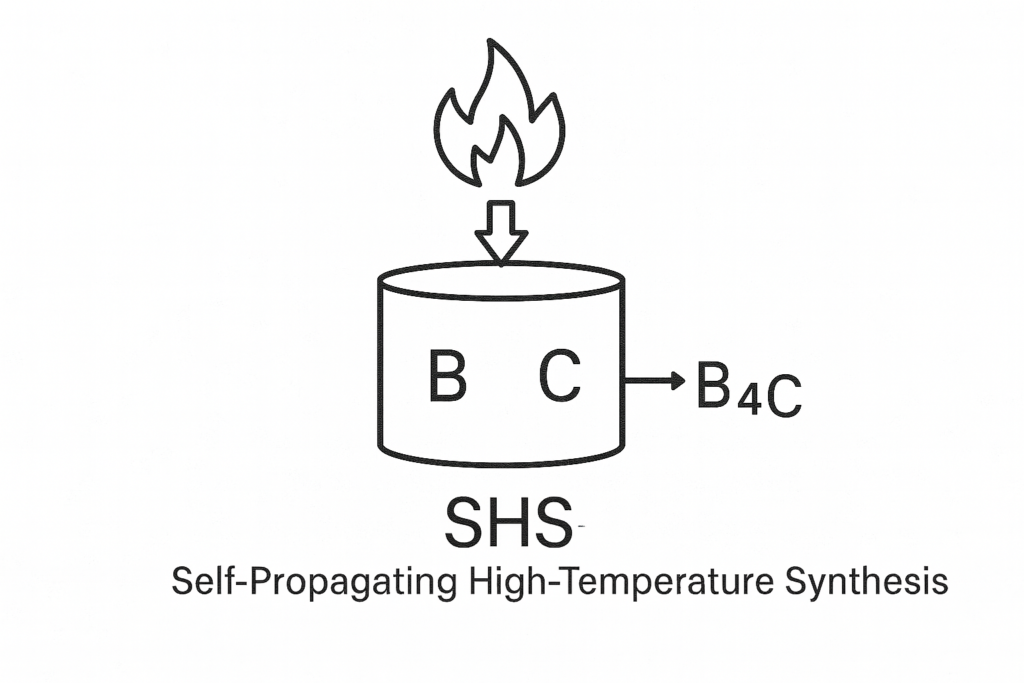

2. SHS — Self-Propagating High-Temperature Synthesis
What is SHS?
SHS (or Self-Propagating High-Temperature Synthesis) is a high-energy, self-sustaining reaction developed in the former USSR.
Once ignited, the reaction propagates on its own — producing high-purity B₄C without needing constant external heating.
✅ Advantages:
- High-purity material
- Fine particles
- Energy-efficient (low power input)
⚠️ Challenges:
- Difficult to scale
- Impurities still possible
- Better suited for lab-scale or custom production
📦 Best for:
- Research and development
- High-purity ceramics
- Specialty defense applications

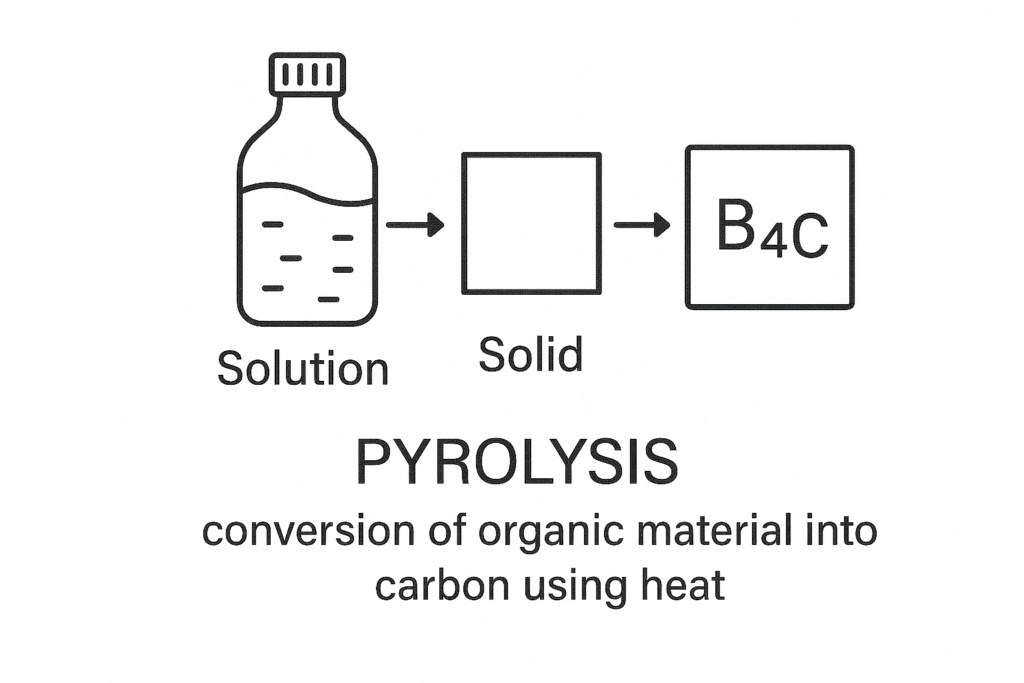

3. Polymer Precursor Pyrolysis — Nano-Grade Precision
What is the Polymer Precursor Method?
This method starts with a boron-containing polymer solution, which is converted step-by-step into a solid and then pyrolyzed at lower temperatures.
The result? Nano-sized boron carbide particles with superior purity.
✅ Advantages:
- Precise control over size and morphology
- Ultra-fine, high-purity output
- Excellent for advanced materials
⚠️ Challenges:
- Expensive and time-consuming
- Low production yield
- Not viable for bulk production
📦 Best for:
- Microelectronics
- Functional coatings
- Nano-ceramic development

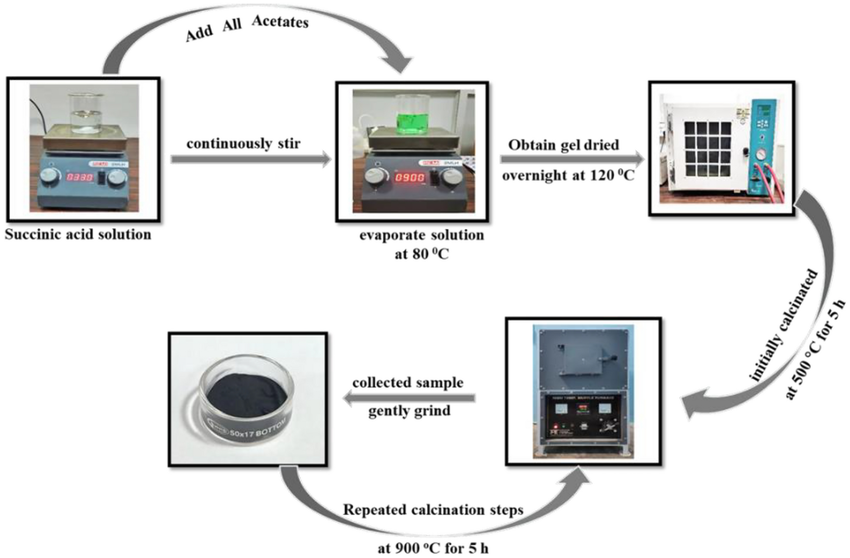

4. Sol-Gel Method — Molecular-Level Control
What is the Sol-Gel Process?
This low-temperature chemical route involves hydrolysis and condensation of boron alkoxides in solution.
The resulting gel is dried and sintered to form fine boron carbide powder.
✅ Advantages:
- Uniform mixing at molecular level
- Tight chemical composition control
- Ideal for complex geometries or layered materials
⚠️ Challenges:
- Sensitive to conditions
- High cost
- Limited to small-batch production
📦 Best for:
- High-value ceramics
- Aerospace and defense materials
- Custom-shaped B₄C parts
Production Methods Comparison
| Method | Purity | Particle Size | Cost | Scale | Best Use Cases |
| Carbothermal Reduction | Medium–High | Medium | Low | Mass production | Abrasives, nozzles, armor plates |
| SHS | High | Fine | Medium | R&D or specialty | Research-grade ceramics |
| Polymer Precursor Pyrolysis | Very High | Nano-level | High | Small scale | Coatings, nano-ceramics |
| Sol-Gel | Very High | Uniform | Medium–High | Specialty production | High-purity structured materials |
Why It Matters: Production Method = Performance
When it comes to sourcing boron carbide, not all B₄C is created equal.
Choosing the right production method ensures:
- Purity that matches your spec
- Consistent grain size across batches
- Lower contamination risk (important for nuclear or defense use)
- Cost-efficiency for industrial applications
GREAT Abrasive: Precision-Processed B₄C You Can Trust
At GREAT Abrasive, we focus on industrial-grade boron carbide produced via a refined carbothermal process. Every batch goes through:
- Crushing & Sieving for optimal particle size
- Magnetic Separation to remove metallic traces
- Acid Washing for improved purity
- Tailored packaging for global shipments
Whether you’re producing grinding wheels, wear-resistant parts, or advanced ceramics — we’ll help you find the right grade with the right specs.
👉 Ready to source reliable boron carbide?
Contact our expert team — we’ll help you choose the perfect B₄C for your application.
